chintCHD130

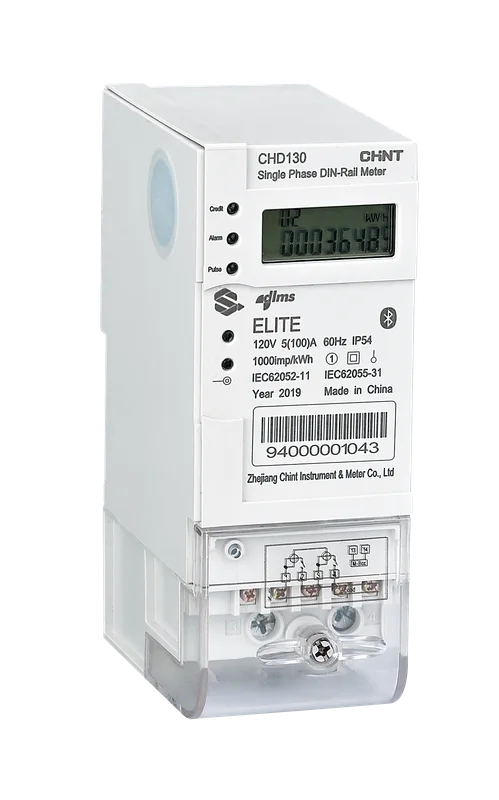

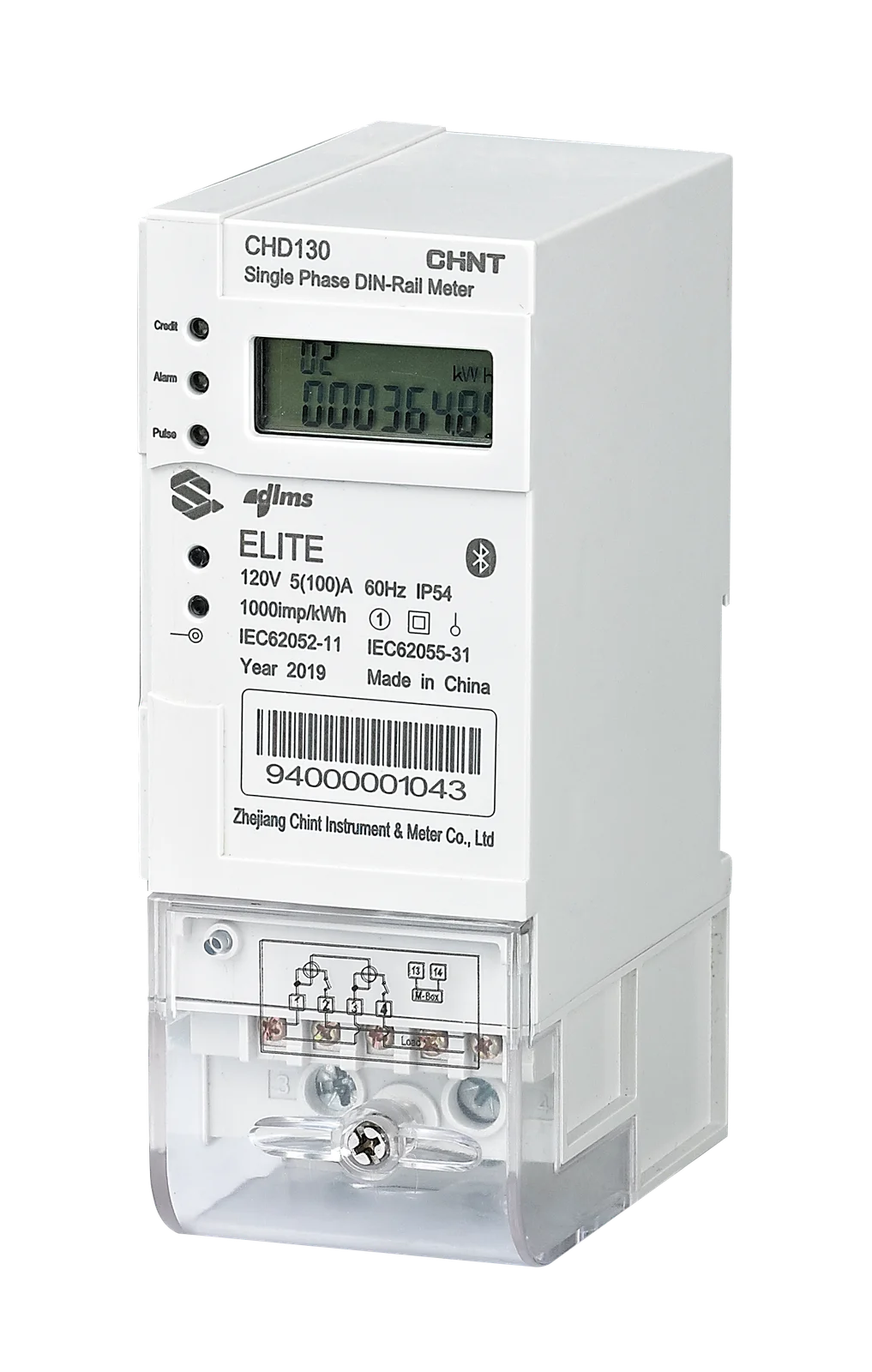

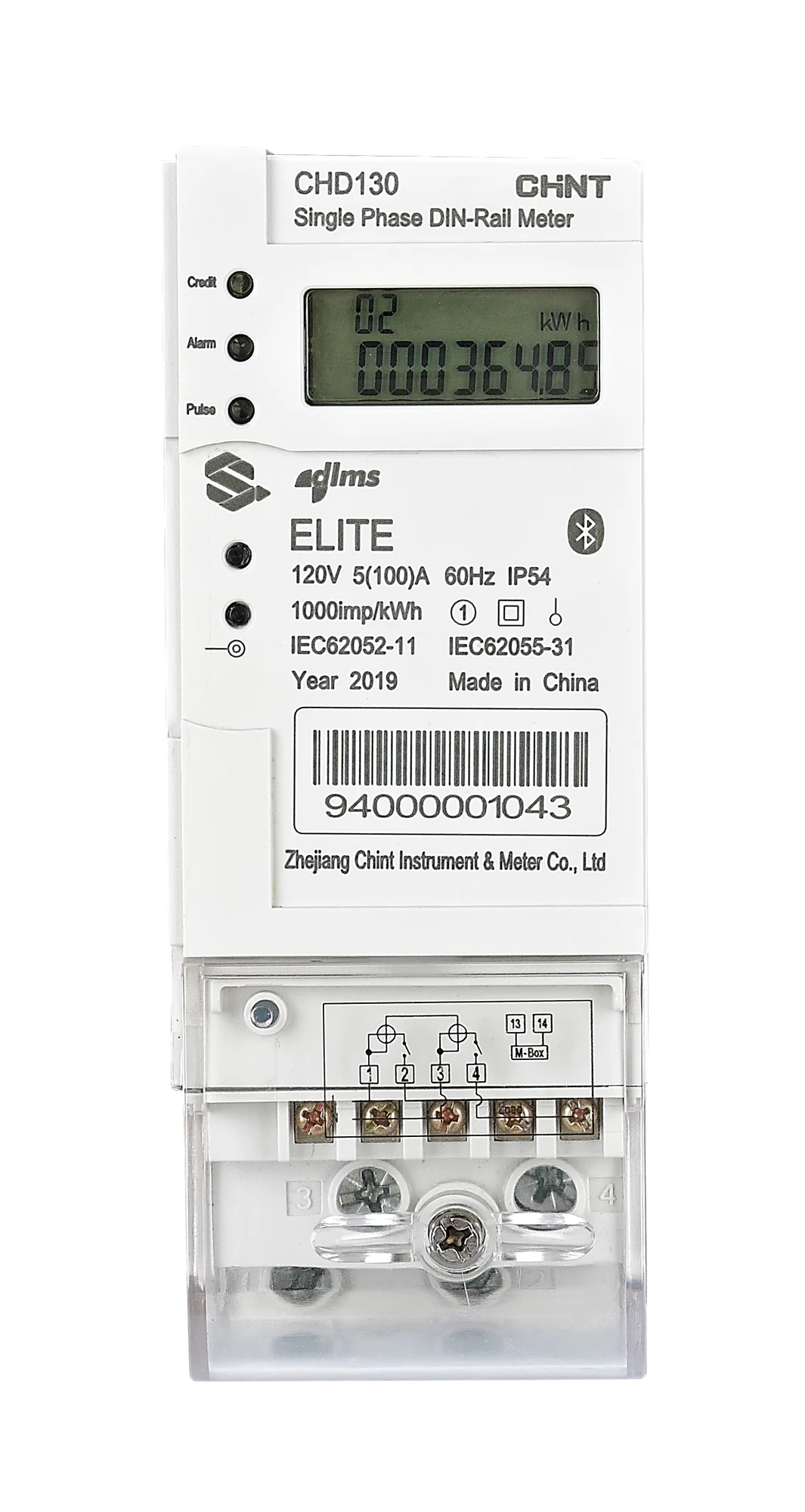

CHD130 Single Phase DIN-Rail Meter
Compact DIN-rail single-phase meter with prepaid / postpaid and STS support.
- DIN-rail mount, 1P2W or 1P3W, prepaid or postpaid configurable
- Class 1.0 / Class 0.5 active accuracy, IEC + STS compliant
- Ib 5A / Imax 60A, 80A or 100A — 110–240V
- DLMS/COSEM over RS485, PLC, M-Bus, RF or Bluetooth
- 20-digit STS token by keypad or remote
meteringdin-railsingle-phaseprepaidstsdlmscosem
CHINT certified
Local support
In stock or short lead time
Overview
The CHINT CHD130 is a 1P2W or 1P3W DIN-rail meter built for residential consumer units, sub-metering applications, and in-suite landlord billing. Postpaid or prepaid is firmware-configurable, with STS-compatible token transfer over keypad or remote. Multiple uplinks (RS485, PLC, RF, Bluetooth, M-Bus) and DLMS/COSEM make it equally at home behind a CIU/DCU or directly on a utility AMI rollout. Available through Chint Uganda.
