chintEC2A11W1

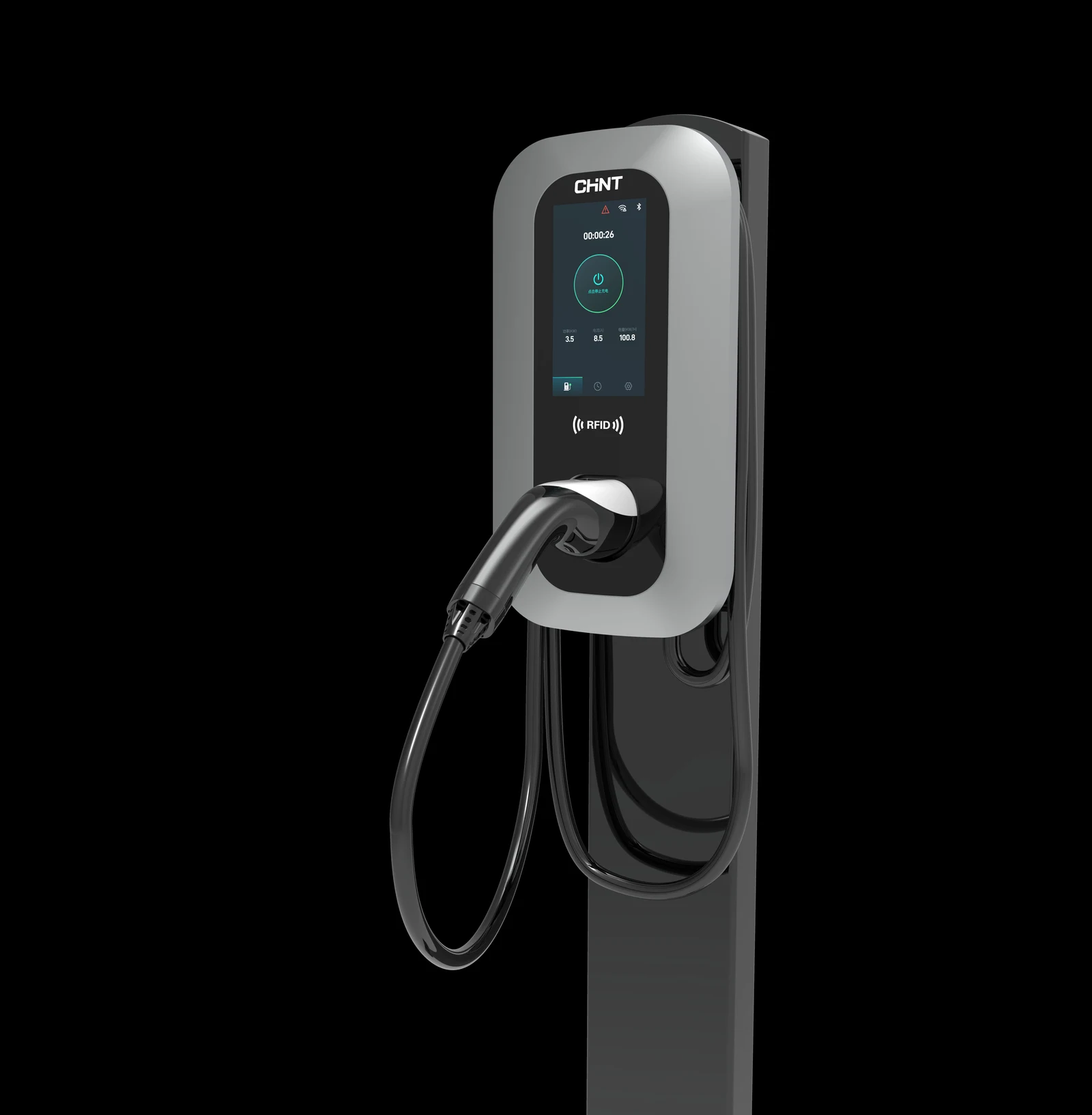

CHINT EC2A 11 kW Three-Phase AC Wallbox EV Charger
Smart 11 kW three-phase AC wallbox — IP65, OCPP 1.6, RFID + APP + Plug&Charge.
- Rated charging power: 11 kW, 16 A three-phase
- Nominal voltage 400 V ±20%, 50 / 60 Hz ±1%
- Type 2 (IEC 62196) plug, 5 m / 6 mm² cable
- OCPP 1.6 over WiFi (Ethernet / 4G optional)
- Authentication: APP / RFID card / Plug&Charge / Bluetooth
evev-chargerwallboxac-chargerthree-phasecommercialocpptype-2
CHINT certified
Local support
In stock or short lead time
Overview
The CHINT EC2A 11 kW is the entry-level three-phase variant of the EC2A AC wallbox series — 16 A per phase on a 400 V supply for faster home and light-commercial charging without stepping up to a 22 kW service. Same EC2A casing, same external interface, same IP65 rating; the difference is the internal contactor stage and the nominal voltage. Identical OCPP 1.6, plug-and-charge, RFID, mobile-app, and Bluetooth authentication suite. Type A + 6 mA DC residual-current detection, 5 m / 6 mm² fixed Type-2 cable, wall- or pedestal-mounted. Source: chintglobal.com EC2A product page (manual issue 01, 2024-05-13).
