chintEC2A22W1

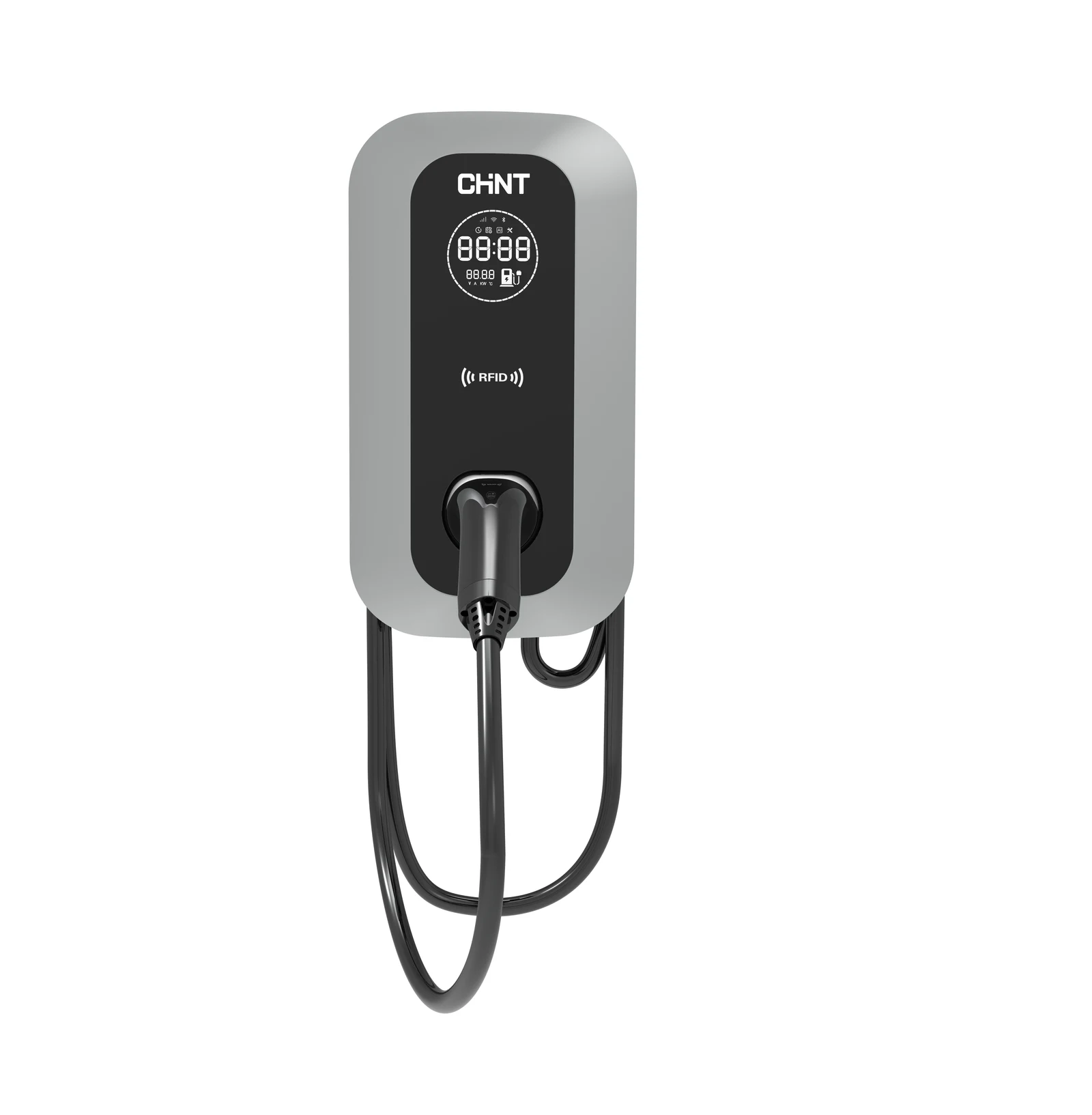

CHINT EC2A 22 kW Three-Phase AC Wallbox EV Charger
Commercial 22 kW three-phase AC wallbox — IP65, OCPP 1.6, RFID + APP + Plug&Charge.
- Rated charging power: 22 kW, 32 A three-phase
- Nominal voltage 400 V ±20%, 50 / 60 Hz ±1%
- Type 2 (IEC 62196) plug, 5 m / 6 mm² cable
- OCPP 1.6 over WiFi (Ethernet / 4G optional)
- Authentication: APP / RFID card / Plug&Charge / Bluetooth
evev-chargerwallboxac-chargerthree-phasecommercialfast-chargerocpptype-2
CHINT certified
Local support
In stock or short lead time
Overview
The CHINT EC2A 22 kW is the commercial three-phase variant of the EC2A AC wallbox series — 32 A per phase on a 400 V supply for fast AC charging at hotels, fuel-station forecourts, public car parks, and commercial fleets. Same IP65 EC2A chassis as the 7 kW and 11 kW variants, identical communication suite, and the same Type A + 6 mA DC residual-current detection — only the internal contactor and coil stage differ. OCPP 1.6 over WiFi (Ethernet / 4G optional) plus APP / RFID / Plug&Charge / Bluetooth authentication. 5 m / 6 mm² fixed Type-2 cable, wall- or pedestal-mounted. Source: chintglobal.com EC2A product page (manual issue 01, 2024-05-13).
