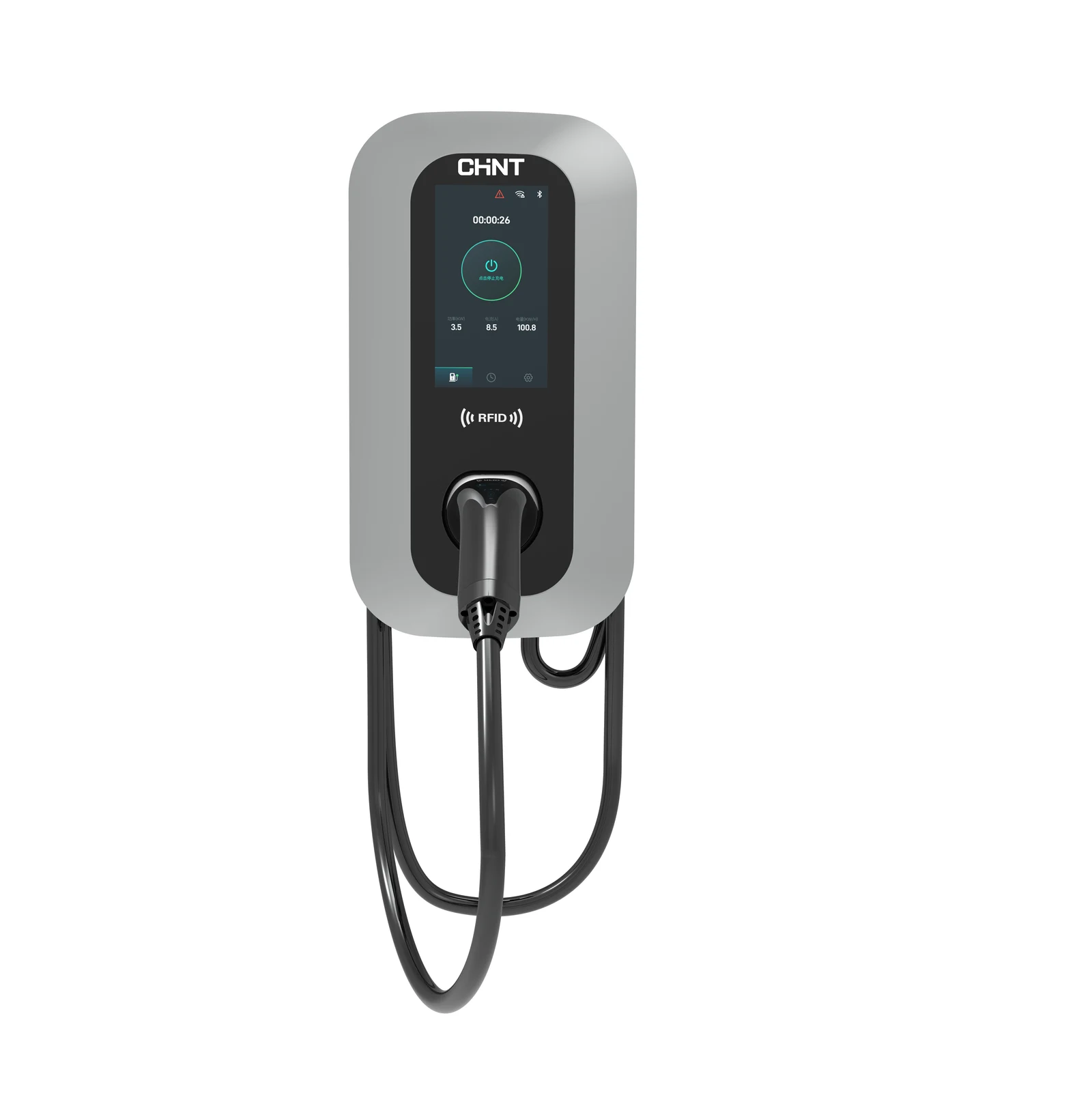

CHINT EC2A 7 kW Single-Phase AC Wallbox EV Charger
Smart 7 kW single-phase AC wallbox — IP65, OCPP 1.6, RFID + APP + Plug&Charge.
- Rated charging power: 7 kW, 32 A single-phase
- Nominal voltage 230 V ±20%, 50 / 60 Hz ±1%
- Type 2 (IEC 62196) plug, 5 m / 6 mm² cable
- OCPP 1.6 over WiFi (Ethernet / 4G optional)
- Authentication: APP / RFID card / Plug&Charge / Bluetooth
evev-chargerwallboxac-chargerresidentialocpptype-2
CHINT certified
Local support
In stock or short lead time
Overview
The CHINT EC2A 7 kW is the residential single-phase variant of the EC2A AC wallbox series — a 32 A Type-2 charger purpose-built for home and small-fleet charging. It supports plug-and-charge, RFID, mobile-app, and Bluetooth authentication, integrates intelligent load balancing for households on tight grid connections, and ships with a 5 m / 6 mm² fixed cable. IP65 outdoor rating, Type A + 6 mA DC residual-current detection, OCPP 1.6 over WiFi (4G / Ethernet optional), and Normal / Schedule / PV charging modes for solar self-consumption. Source: chintglobal.com EC2A product page (manual issue 01, 2024-05-13).
